Introduction
It is useful to know the approximate sizes of things. Is something bigger than a bread box? Will it fit through a doorway? Is it as big as it is supposed to be? These are all questions that we may find ourselves asking on a regular basis.
The way people have measured things has varied over time. For example, in Egyptian times, the length of an object was measured in cubits where one cubit corresponded to the distance from one’s elbow to the tip of one’s middle finger. The cubit could be divided into smaller segments, related to the size of different parts of the hand. However, it is easy to imagine that these sizes vary greatly from person to person. A cubit measured on a small child would be very different than one measured on an adult. Through the ages, measurement systems became more standardized. The two primary systems of measurement are the English and the Metric system. Scientists and engineers all use the metric system.
Inclusive Teaching Practices
Inclusive teaching refers to methods that are designed to engage students in learning that is meaningful, relevant, and accessible to all. Creating an inclusive environment is a continuing process that begins before the class starts and is built into the class design. For more resources, go to our Inclusive Teaching Practices page.
Strategies for this background content include:
- Using examples that are relevant to students’ everyday lives, such as replacing “bread box” in the first paragraph with an X-box or a cereal box.
- Invite students to identify their own examples of things at various sizes and scales. For example, “What is the largest thing you can think of?” and “What is the tiniest thing you can think of?”
- Ask for multiple answers and examples about student experiences with size and scale.
The Metric System
In everyday life the English system of measurement with units like feet, gallons and pounds is primarily used in the United States. Scientists and the rest of the world use the metric system of measurement with base units such as the meter, liter and gram. The base unit is then multiplied or divided by powers of ten to represent larger or smaller measurements. Prefixes are used to relate the relative size of the measurement with respect to the base unit. Since the base unit for length is the meter the table below shows all the different prefixes that could be used to express length.
| Prefix | Measurement | Scientific Notation |
| Kilo- | 1000 m | 1 x 103 m |
| Hecta- | 100 m | 1 x 102 m |
| Deka- | 10 m | 1 x 101 m |
| BASE | 1 m | 1 x 100 m |
| Deci- | 0.1 m | 1 x 10-1 m |
| Centi- | 0.01 m | 1 x 10-2 m |
| Milli- | 0.001 m | 1 x 10-3 m |
| Micro- | 0.000001 m | 1 x 10-6 m |
| Nano- | 0.000000001 m | 1 x 10-9 m |
| Pico- | 0.000000000001 m | 1 x 10-12 m |
| Femto- | 0.000000000000001 m | 1 x 10-15 m |
1000 meters (m) would be written as 1 kilometer (km). Other base units can be used as well. For mass, the base unit is the gram (g), so 1/1000th of a g would be written as a 1 milligram (mg). Often is it hard to visualize what those numbers really mean because units in the metric systems are not something we may use in our every day life.
AtomTouch

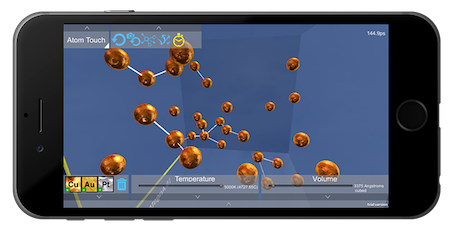

In order to give students and teachers a more hands-on sense of scale, we developed a free, 3D touchscreen app called AtomTouch. AtomTouch includes a size and scale introductory video, and many engaging and educational activities to give students a real sense of atomic behavior. Play online at BrainPop – AtomTouch or download it for FREE from the App Store or from Google Play.
Size & Scale Activities
Nanotechnology Background
Nanotechnology Activities
This is an accordion element with a series of buttons that open and close related content panels.
How big is a kilometer?
For those of us at UW-Madison, the distance from the edge of campus at Library mall to the steps of the Wisconsin state capitol building is 1 kilometer (km). But, there are plenty of other things around the world that are on the kilometer scale.
The world’s longest suspension bridge, Akashi Kaikyo Bridge, is just under 2 kilometers (km) long, measuring 1,991 m. It would take you approximately 23 minutes to walk across this bridge.
http://en.wikipedia.org/wiki/Akashi-Kaikyo_Bridge
The Willis Tower in Chicago, the tallest building in North America, measures ~0.5 km (527 m) to the top of the antennae.
How big is a meter?
A meter is a little bit bigger than a yard. A lot of things in our everyday lives are around the same size as a meter. An elementary school student is approximately one meter (m) tall.
However, most professional basketball players are at least 2 meters (m) tall. Shaquille O’Neill, at 7’1″, is 2.1 m tall. He seems to tower over President Bush.
How big is a centimeter?
A centimeter (cm) is 1/100th of a meter. If you cut up a meter stick into 100 equal pieces, each piece would be one cm in size.
Your pinky finger is about 1 cm wide. Same goes for the width of the sugar cube.
Pinky finger
Brown sugar cubes
How big is a millimeter?
A millimeter (mm) is 1/1000th of a meter. A dime is approximately 1 mm thick. Grains of sand range from 0.1 mm to 2 mm in size.
http://www.lcurve.org/millbill.htm
http://en.wikipedia.org/wiki/Sand
So far all the objects listed from kilometer to millimeter are all things that can be seen with your eyes. Some are easier to see than others, but you typically don’t need a special tool to see any of these objects. When things get smaller than a millimeter, it gets hard to see them with just your eyes.
How big is a micrometer?
A micrometer, also called a micron, is one thousand times smaller than millimeter. It is equal to 1/1,000,000th (or one millionth of meter). Things on this scale usually can’t be seen with your eyes.
The diameter of a hair, which is 40-50 microns wide, is challenging to discern without the use of a magnifying glass. A magnifying glass will help you see a dust mite. Dust mites are usually around 400 microns long.
Human hair magnified 200X
Dust mite magnified 40X
Things that are just a few microns in size can’t be seen with a magnifying glass. However, a light microscope, like the ones you may have used in biology class, can help you see things this small. Red Blood cells are 6-10 microns in diameter. Many types of bacteria typically measure 5-20 microns
Red blood cells magnified 1700X
How big is a nanometer?
A nanometer (nm) is 1,000 times smaller than a micrometer. It is equal to 1/1,000,000,000th or one-billionth of a meter. When things are this small, you can’t see them with your eyes, or a light microscope. Objects this small require a special tool called a scanning probe microscope.
Things on the nanometer scale include: Virus (30-150 nm), the width of DNA (2.5 nm), buckyballs (~1 nm in diameter), CNT (~1 nm in diameter). The SARS-Cov-2 coronavirus which causes COVID-19 and resulted in the 2020 global pandemic is a fairly large virus at 60-120 nm.
Electron micrograph of SARS-CoV-2 virions from
Virus magnified 20,000X
Model of DNA
Model of a buckyball
Model of a carbon nanotube
Atoms are smaller than a nanometer. One atom measures ~0.1-0.3 nm, depending on the element.
SEM image of atoms on a surface. Source: Image originally created by IBM Corporation.
Here are some other everyday objects measured in nanometers:
- One inch equals 25.4 million nanometers.
- A sheet of paper is about 100,000 nanometers thick.
- A human hair measures roughly 50,000 to 100,000 nanometers in diameter.
- Your fingernails grow one nanometer every second.
